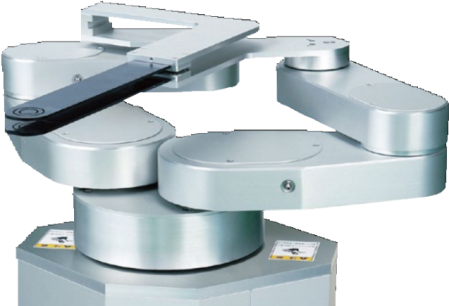

Mechanical arm

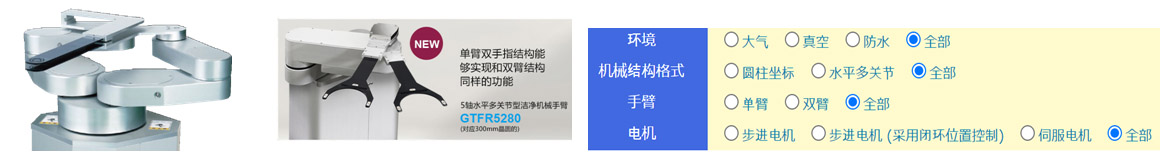

● Popular commodities: SCR3160CSN, STCR4160SN
Closed loop position control motor equipped with absolute encoder encoder does not need to replace the battery

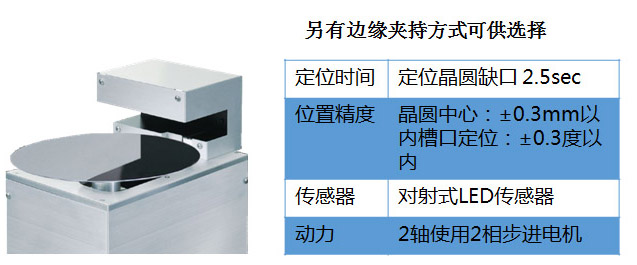

● New Aligner "SAL3000HV Series"

JEL ALIGN TOOL software with full automatic adjustment function

Product features:
It is applicable to the position calibration of mirrors, transparent, translucent wafers of different materials and sizes attached with BG tape.
The self-developed image recognition sensor is used, and the integrated design of controller and motor driver integrated into the equipment body is adopted.
Control mode: serial RS232C or parallel optical I/O port
The shape of the missing edge that does not conform to SEMI specifications can also be customized

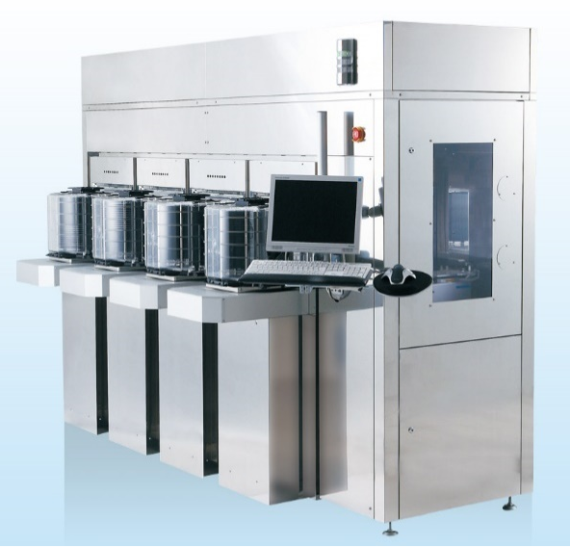

●SSY-11010
400 pieces of inline type of 4 foups/h
Suitable for wafer sorting
Corresponding 300mm FOUP
Meets SEMI Standard
The ID reader is equipped to read the ID information of the wafer
High throughput (300 tablets/h or 600 tablets/h)
By planning the range of motion of the arm, the wafer can be transmitted smoothly and at a high speed

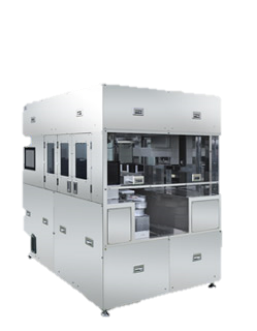

●SSY-20010
It is applicable to automatic transmission between Cassette and Container
Equipped with memory cassette automatic cover opening mechanism
Automatically identify and transfer wafers and paper pads in the storage cassette
Optional Bernoulli finger for thinned wafers
One device can complete the function of packaging and unpacking
